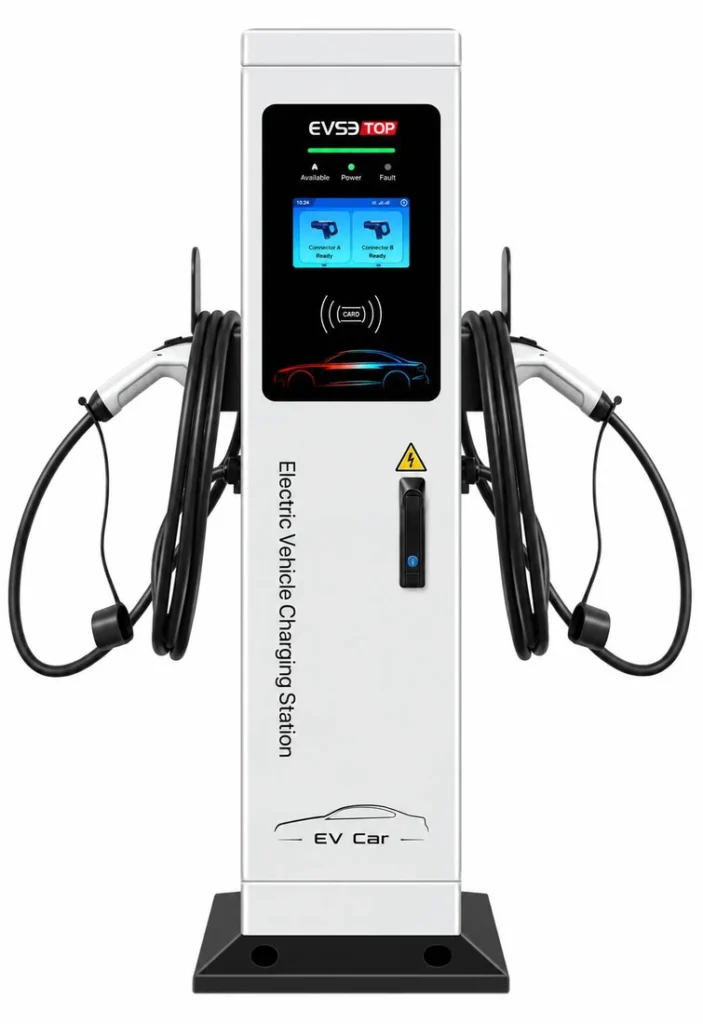

ET-AC14kW-Y2 — 14 kW Dual-Gun AC Charger

Name: ET-AC14kW-Y2 — 14 kW Dual-Gun AC Charger
Brand: Evsetop

Product Description

Model: ET-AC14kW-Y2

Two outlets, one cabinet: 14 kW combined AC charging with 2 x 7 kW per gun, a 4.3-inch touchscreen and 4G / Wi-Fi / Ethernet.

Total rated power: 14 kW
Max per-gun power: 2 x 7 kW
Max per-gun current: 2 x 32 A
Input voltage: 220 V AC ±15%
Rated input current: 64 A AC
Supply arrangement: Single-phase AC + PE

Request a Quote Download

14 kW is the combined rating — each outlet is listed at up to 7 kW, not 14 kW per gun. Configure cable length, operating mode and backend integration for the final charger. The cold-rolled steel / galvanized cabinet is rated IP54, cools by natural air and draws ≤5 W at standby.

Specifications

Product specifications
Electrical
Total rated power	14 kW
Max per-gun power	2 x 7 kW
Max per-gun current	2 x 32 A
Input voltage	220 V AC ±15%
Rated input current	64 A AC
Supply arrangement	Single-phase AC + PE
Hardware
Charging guns	2
Display	4.3-inch touchscreen
Communication listed	4G / Wi-Fi / Ethernet
Cooling	Natural air cooling
Standby power	≤5 W
Physical
Enclosure rating stated	IP54
Cabinet dimensions	300 x 150 x 1245 mm
Weight stated	≤23 kg
Enclosure material	Cold-rolled steel / galvanized sheet
