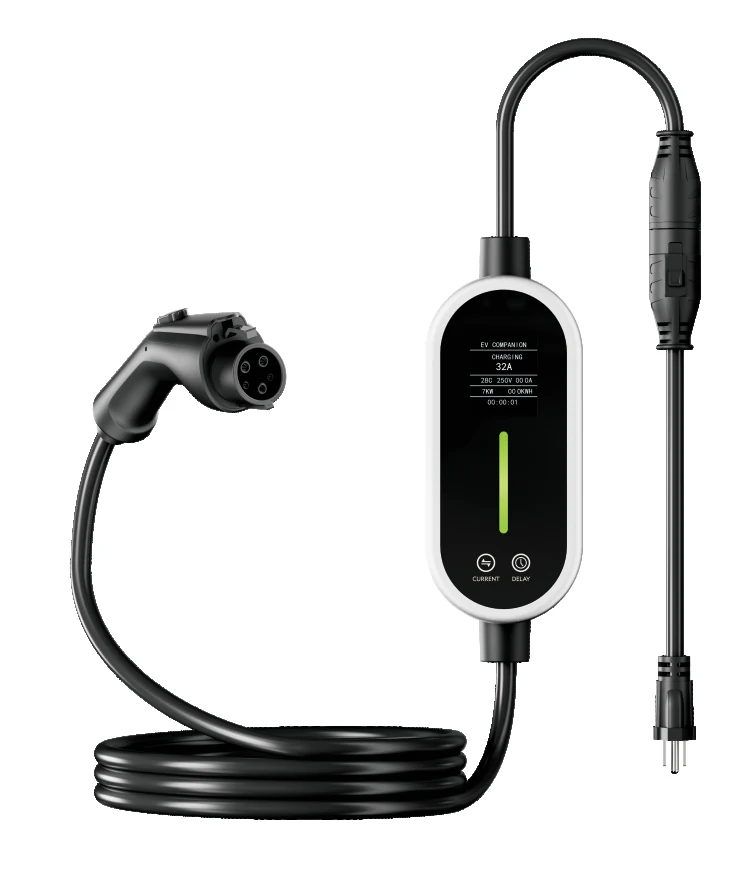

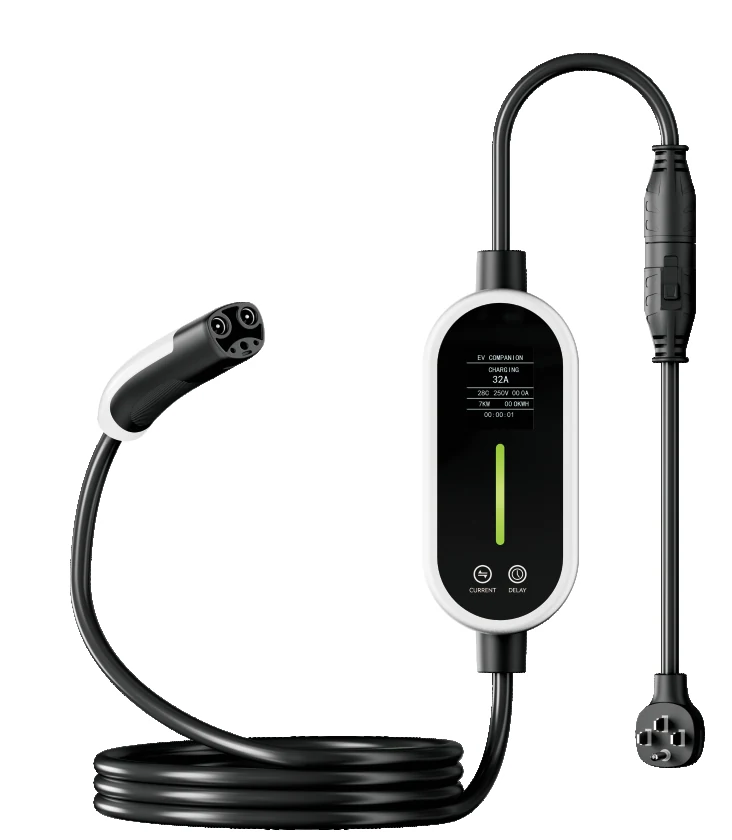

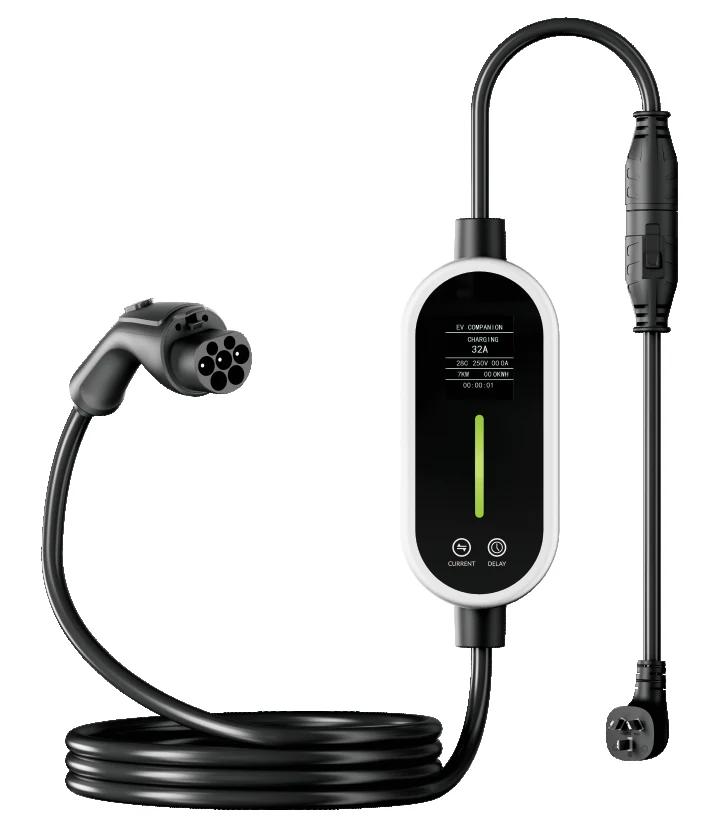

Oval Portable EV Charger — Mode 2, up to 7 kW

Name: Oval Portable EV Charger — Mode 2, up to 7 kW
Brand: Evsetop

Product Description

Model: Oval series (Mode 2)

Mode 2 portable AC charging in the oval housing with interchangeable supply plugs — Type 2, GB/T, NACS and Type 1 vehicle interfaces.

Type 2: Up to 7 kW per the heading; a 22 kW icon conflicts — confirm final rating
GB/T: Up to 7 kW
NACS: Up to 9.6 kW
Type 1: Up to 9.6 kW

Request a Quote Download

Power depends on the selected supply-plug adapter: the oval housing covers Type 2 (up to 7 kw per the heading; a 22 kw icon conflicts — confirm final rating per the source heading), GB/T up to 7 kW, and NACS / Type 1 up to 9.6 kW on NEMA plugs. App control, temperature protection and current / delay controls are listed; IP67 rating is stated for the body — confirm the rating scope for the selected assembled configuration. Exact model, cable length, voltage and cable size require confirmation when ordering.

Specifications

Product specifications
Power by vehicle interface
Type 2	Up to 7 kW per the heading; a 22 kW icon conflicts — confirm final rating
GB/T	Up to 7 kW
NACS	Up to 9.6 kW
Type 1	Up to 9.6 kW
Type 2 supply plug options
EU plug	16 A · 3.5 kW
UK plug	13 A · 2.8 kW
BR / CH plug	16 A · 3.5 kW
IT plug	16 A · 3.5 kW
CEE 1-phase	32 A · 7 kW
GB/T supply plug options
GB plug	10 A · 2.2 kW
GB plug	16 A · 3.5 kW
GB plug	32 A · 7 kW
CEE 1-phase	32 A · 7 kW
NACS / Type 1 supply plugs (NEMA)
NEMA 5-15P	15 A · 1.8 kW
NEMA 6-20P	16 A · 3.5 kW
NEMA 6-50P	32 A · 7 kW
NEMA 10-50P	32 A · 7 kW
NEMA 14-50P	40 A · 9.6 kW
General
Mode	Mode 2 portable AC charging
Supply connection	Interchangeable plugs; power depends on the selected adapter
Functions listed	App control; temperature protection; current / delay controls
IP rating listed	IP67
Ordering information	Exact model, cable length, voltage and cable size require confirmation
