Angled Portable EV Charger — Mode 2, up to 22 kW

Name: Angled Portable EV Charger — Mode 2, up to 22 kW
Availability: InStock

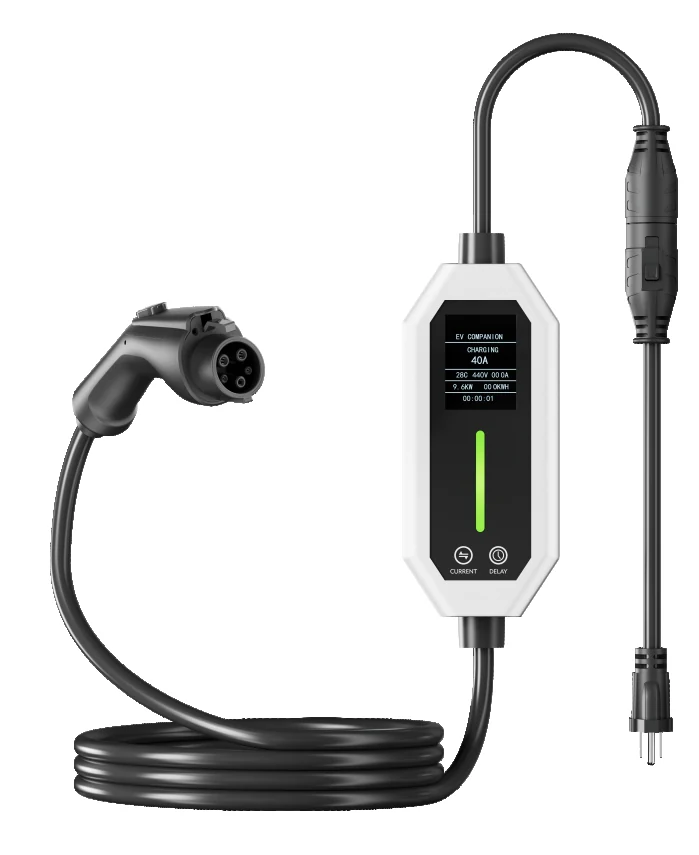

Angled portable EV charger, Mode 2 up to 22 kW, view 1

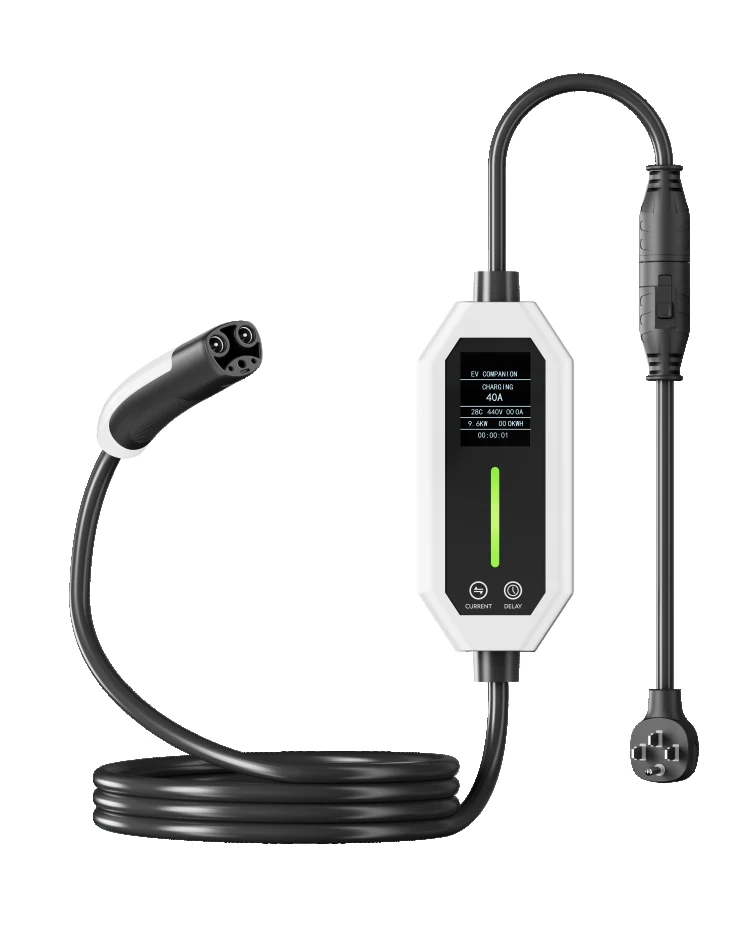

Angled portable EV charger, Mode 2 up to 22 kW, view 2

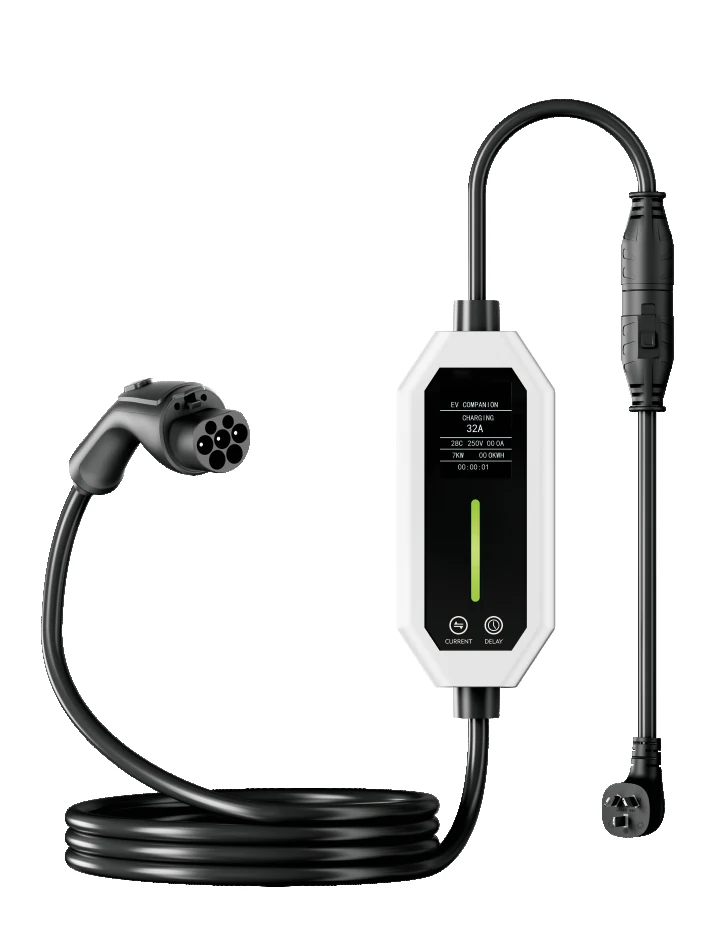

Angled portable EV charger, Mode 2 up to 22 kW, view 3

Angled portable EV charger, Mode 2 up to 22 kW, view 4

Product Description

Model: Angled series (Mode 2)

Mode 2 portable AC charging in the angled housing with interchangeable supply plugs — Type 2, GB/T, NACS and Type 1 vehicle interfaces.

Type 2: Up to 22 kW
GB/T: Up to 7 kW
NACS: Up to 9.6 kW
Type 1: Up to 9.6 kW

Request a Quote Download

Power depends on the selected supply-plug adapter: the angled housing covers Type 2 (up to 22 kw), GB/T up to 7 kW, and NACS / Type 1 up to 9.6 kW on NEMA plugs. App control, temperature protection and current / delay controls are listed; the IP67 rating is stated for the body — confirm the rating scope for the assembled configuration you order. Exact model, cable length, voltage and cable size are fixed on the configuration sheet.

Specifications

Product specifications
Power by vehicle interface
Type 2	Up to 22 kW
GB/T	Up to 7 kW
NACS	Up to 9.6 kW
Type 1	Up to 9.6 kW
Type 2 supply plug options
EU plug	16 A · 3.5 kW
UK plug	13 A · 2.8 kW
CEE 1-phase	32 A · 7 kW
CEE 3-phase	16 A · 11 kW
CEE 3-phase	32 A · 22 kW
GB/T supply plug options
GB plug	10 A · 2.2 kW
GB plug	16 A · 3.5 kW
GB plug	32 A · 7 kW
CEE 1-phase	32 A · 7 kW
NACS / Type 1 supply plugs (NEMA)
NEMA 5-15P	15 A · 1.8 kW
NEMA 6-20P	16 A · 3.5 kW
NEMA 6-50P	32 A · 7 kW
NEMA 10-50P	32 A · 7 kW
NEMA 14-50P	40 A · 9.6 kW
General
Mode	Mode 2 portable AC charging
Supply connection	Interchangeable plugs; power depends on the selected adapter
Functions listed	App control; temperature protection; current / delay controls
IP rating listed	IP67
Ordering information	Exact model, cable length, voltage and cable size require confirmation
