Product Description

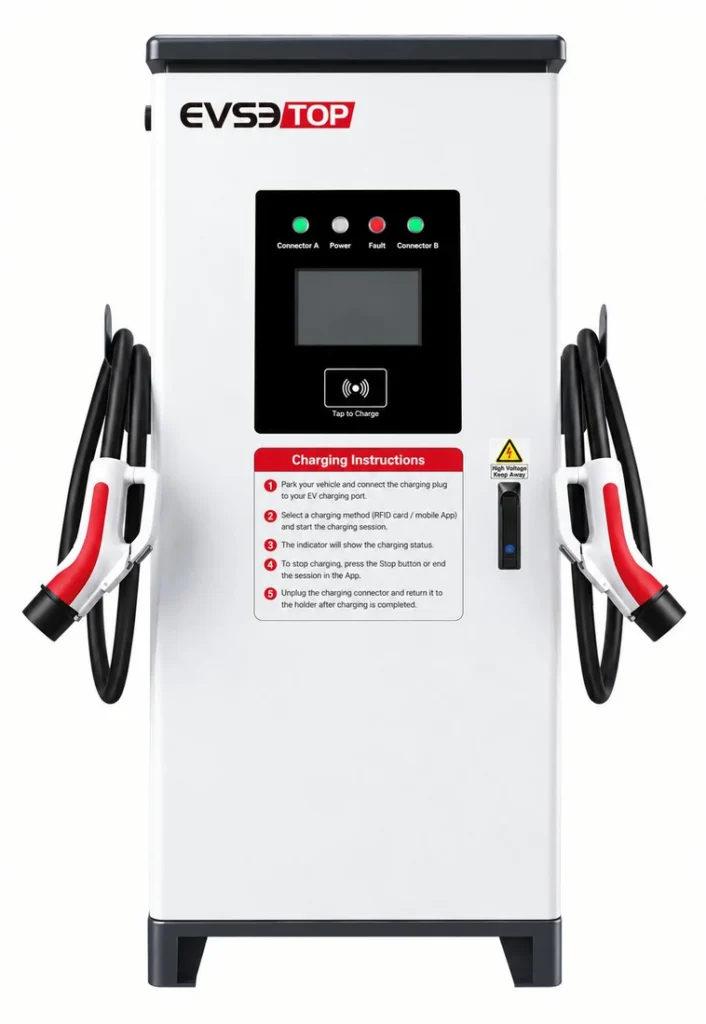

Model: ET-DC120kW-Y2
120 kW total output, two guns, 380 V three-phase supply, 7-inch touchscreen and 700 x 550 x 1680 mm integrated cabinet.
120 kW is the total charger rating — the brochure lists up to 120 kW per gun, and simultaneous charging stays within the total cabinet capacity. Compact cabinet envelope (700 x 550 x 1680 mm), IP54 rated, with forced intelligent air cooling, a 7-inch touchscreen and 12 / 24 V DC auxiliary supply.
| Electrical | |
|---|---|
| Max total power | 120 kW |
| Max per-gun power | 120 kW |
| Max total DC current | 384 A |
| Max per-gun DC current | 250 A |
| Rated input current | 192 A AC |
| Input supply | 380 V AC ±15% |
| Supply system | Three-phase, five-wire |
| Hardware | |
| Charging guns | 2 |
| Display | 7-inch touchscreen |
| Communication listed | 4G / Wi-Fi / Ethernet |
| Auxiliary supply | 12 V / 24 V DC |
| Cooling | Forced intelligent air cooling |
| Physical | |
| Enclosure rating stated | IP54 |
| Cabinet dimensions | 700 x 550 x 1680 mm |
| Weight stated | ≤225 kg |
