Split DC Charging System — 960 to 2400 kW

Name: Split DC Charging System — 960 to 2400 kW
Brand: Evsetop

Product Description

Model: Split DC 960–2400 kW

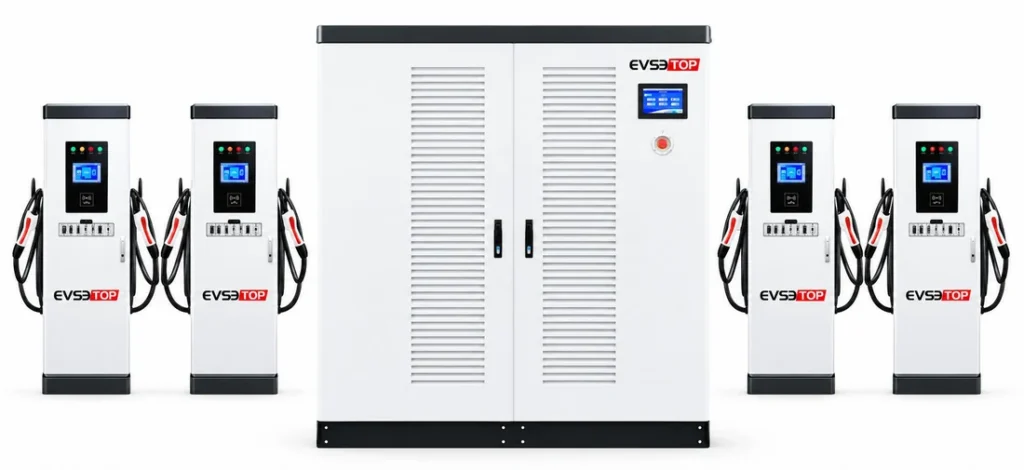

Separate rectifier cabinet and charging terminals: five system sizes from 960 to 2400 kW with 2–24 output circuits.

960 kW: 3200 A max system DC · 2–12 circuits
1200 kW: 4000 A max system DC · 2–15 circuits
1600 kW: 5300 A max system DC · 2–20 circuits
1920 kW: 6400 A max system DC · 2–24 circuits
2400 kW: 8000 A max system DC · 2–24 circuits

Request a Quote Download

The split architecture places the rectifier cabinet separately from the charging positions. Choose the total system capacity, number of output circuits and terminal cooling configuration as one package. Terminal count does not mean every gun can simultaneously deliver the maximum terminal rating — confirm the allocation strategy against the system total. The source model label conflicts with the system rating, so configurations are listed without invented model codes.

Specifications

Product specifications
System configurations
960 kW	3200 A max system DC · 2–12 circuits
1200 kW	4000 A max system DC · 2–15 circuits
1600 kW	5300 A max system DC · 2–20 circuits
1920 kW	6400 A max system DC · 2–24 circuits
2400 kW	8000 A max system DC · 2–24 circuits
Common electrical
Input supply	380 V AC ±15%, three-phase five-wire
Input frequency	50 ±1 Hz
DC output voltage	200–1000 V
Constant-power range	300–1000 V
Terminal current options	250 / 300 / 400 / 600 / 800 A
Terminal display	7-inch capacitive touchscreen
Physical & environment
Main cabinet dimensions	2550 x 1500 x 2020 mm (W x D x H)
Natural-cooled terminal	500 x 240 x 1600 mm
Liquid-cooled terminal	500 x 340 x 1600 mm
Enclosure material listed	High-strength galvanized sheet
System cabinet cooling	Forced intelligent air cooling
Operating / storage temp	-30 to +50 °C / -40 to +70 °C
Altitude listed	≤2000 m; derating above 2000 m
Enclosure rating stated	IP54
Control & protection
Communications listed	4G / Ethernet / RS485 / CAN
Activation listed	QR / RFID / VIN / plug and charge
Metering accuracy listed	Class 2
Control functions	Automatic power allocation, OTA update, reservation, scheduled charging, remote operation
Protection functions	Input over/undervoltage; output overload/short circuit; leakage, grounding, overtemperature, surge, door interlock, e-stop, insulation monitoring, gun-lock / connector-temperature
